Bedside table 450 × 550 × 400: cut list and cutting plan
A small nightstand with two equal drawers on a 50 mm plinth. 18 mm board, 3 mm HDF back and drawer bottoms. All sizes in millimetres.
Cut list
| Part | Length × width, mm | Qty | Edge banding |
|---|---|---|---|
| Side | 550 × 400 | 2 | 1 long |
| Top | 414 × 400 | 1 | 1 long |
| Bottom | 414 × 400 | 1 | 1 long |
| Plinth | 414 × 50 | 1 | — |
| Drawer front | 447 × 247 | 2 | all |
| Drawer side | 350 × 190 | 4 | 1 long |
| Drawer front/back | 352 × 190 | 4 | 1 long |
Not cut from the board: Back panel, HDF 3 mm: 446 × 496 mm · Drawer slides (ball-bearing, side-mount, 13 mm per side): 2 sets, nominal length 350 mm · Drawer bottoms, HDF 3 mm: 2 × (388 × 350 mm, check per section) · 2 pairs of ball-bearing slides, 350 mm · 2 knobs · about 20 screws 4 × 16 · 8 confirmat screws 7 × 50
How the sizes are worked out
- Sides 550 × 400; top, bottom and plinth = 450 − 36 = 414.
- Two drawer fronts 447 × 247 cover the whole front with 3 mm gaps.

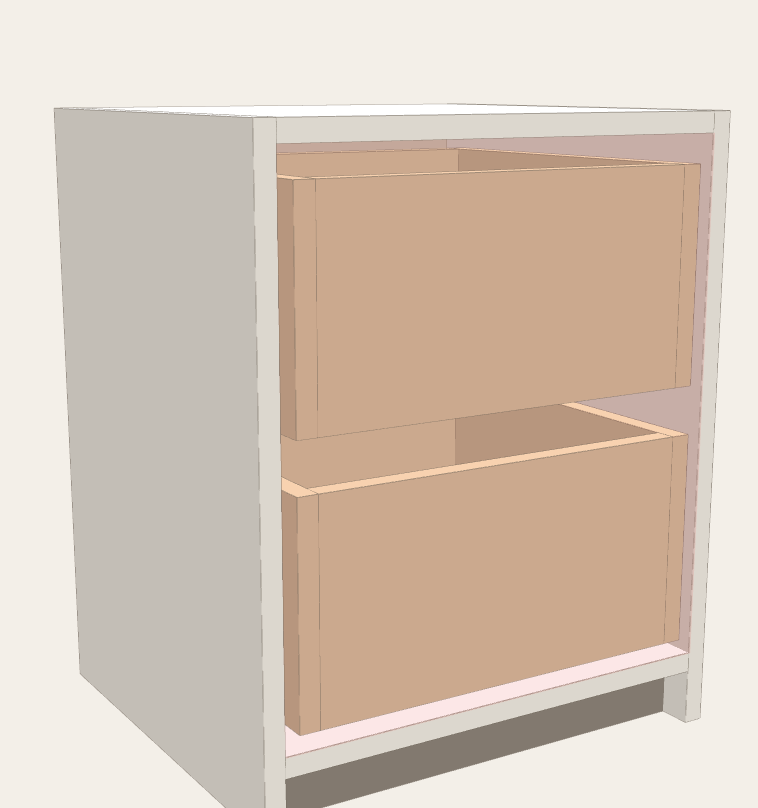

- Box sides are 350 long (slide length) and 190 high; front and back pieces 352.
- Drawer bottoms in 3 mm HDF, 388 × 350.
Cutting plan on 2440 × 1220 sheets
Laid out by the CutRun calculator with a 3 mm saw kerf and 10 mm trimmed off the factory edges.
52 % of the board ends up in the furniture.
Other sizes on 2440 × 1220 sheets
Same construction, worked out by the calculator for other common sizes (width × height × depth, mm):
| Size | Sheets | Board | Edge banding |
|---|---|---|---|
| 400 × 550 × 400 | 1 | 1.44 m² | 7.0 m |
| 400 × 650 × 400 | 1 | 1.52 m² | 7.2 m |
| 450 × 550 × 350 | 1 | 1.41 m² | 7.3 m |
| 450 × 550 × 400 | 1 | 1.55 m² | 7.5 m |
| 500 × 550 × 400 | 1 | 1.65 m² | 8.0 m |
| 500 × 600 × 400 | 1 | 1.69 m² | 8.1 m |
| 600 × 550 × 400 | 1 | 1.86 m² | 9.0 m |
600 × 550 × 400 is the largest size in this table that fits on a single sheet (63 % of it used).
Assembly order
- Band the edges: fronts all round, the rest on the front edge.
- Build the carcass, nail on the back.
- Screw on the slides, build the two boxes and fit them.
- Screw on the fronts with an even 3 mm gap.
Questions
How many sheets do I need for a bedside table?
A 450 × 550 × 400 mm version in 18 mm board fits on one 2440 × 1220 mm sheet: 1.55 m² of board and about 7.5 m of edge banding. The 3 mm HDF back is cut from a separate thin sheet.
How many bedside tables can I cut from one sheet?
See the line under the size table: the calculator places as many complete sets as fit on one sheet of your size.
Can I make it without drawers?
Yes — open it in the cabinet builder and change the section to a shelf with a door or to an open shelf; the cut list updates.
Need a different size? Open this design in the cabinet builder, type your own width, height and depth or change shelves, drawers and doors — the cut list and the drawing update as you go. Then send it to the calculator for your own sheet size.
Open in the cabinet builder How to calculate edge bandingWorked out from a typical construction — check every size against your board and hardware before you cut. Cut list and sheet layout made with CutRun.
